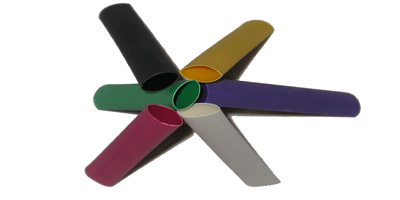

Semi-Rigid Dual Wall Heat Shrinkable Tubing

Our heat shrink tubing is also available with a "melt-wall" construction. When exposed to heat (usually a bit lower than the activation temperature of the heat shrink), the inner layer begins to flow (just like a hot melt glue). When the tubing shrinks and cools down, inner layer forms an adhesion layer between the tubing and the component or wire. This provides a water-tight seal, protecting the connector and/or wire.

Feature :

• Operating Temperature: -55° C to 110° C
• Shrink Temperature: 120° C
• Shrink Ratio: 3 to 1
• Longitudinal Shrinkage: up to 15%

Specifications/Approvals:

Military: AMS-DTL 23053/4 Class 1 (Formerly Mil-I-23053/4)
Underwriters Lab: UL 224 600V, 125°C, VW-1 (Jacket only), CSA

Crosses to: Sumitomo W5DL, Raychem SCL, Alpha FIT-300, 3M MW, Canusa CPA-300, LG GSHS-3625WS
