Specialty Cable Ties














Cable ties are an extremely versatile way to organize cables and bundle wires. They are easy to install, and can be cut off for rework very easily. Cable ties have also been referred to as lashing ties, wire ties, zip ties and wire tidies. There are several types of wire ties available, depending on your application. Nylon cable ties are the most common type. You'll see them in home repair centers, electrician supply houses, etc. Others are much less common, and you need to visit websites like buyheatshrink.com to find them.

Click picture for larger image - Halar Plenum Cable TiesAir Handling and Duct Ties

BuyHeatShrink.com's air handling ties are suitable for air handling areas and HVAC (heating venting and air conditioning) duct work. Available in long lengths - 3 foot cable ties, 4 foot cable ties and 5 foot cable ties. Also available in Burgundy air space color for plenum wiring.

Nominal Size

Actual Length

 Max bundle Diameter

Colors

Qty/bag

Price/bag


7"
7.5"
2.2"
 Burgundy
100
$69
11"
11.2"
3"
 Burgundy
100
$146
14"
14.5"
4"
 Burgundy
100
$192
8" Mounting Hole
2.4"
 Burgundy
100
$117

36"
35.9
11.0

Black, Natural

50

$12.50
Select Color:
48"
48.0
15.0
Black, Natural, Gray
 50 $18
Select Color:
60" 60.0 20.0
Natural
 50 $50.50

Top

Velcro tiesVelcro Hook and Loop Cable Ties

Width
Length

Colors

Qty/bag

Price/bag


3/4" 8" Black, Blue, Green, Orange, Red, White, Yellow 25 $8
Select Color:
Assorted (Black, Blue, Green, Red, Yellow) 3 of each color 15 $6
Select Color:

3/4"
12"

Black

100

$60

3/4"
18"

Black

100

$88

1"
8"

Black, Yellow, Green, Red

100

$50
Select Color:

1"
12"

Black

100

$66

Top

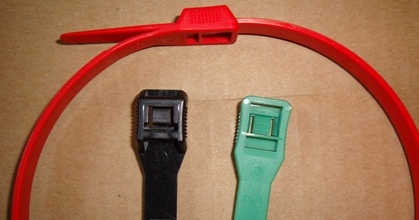

Playground zip ties

Low Profile Cable Ties

Nominal Size

Actual Length
 Min Loop Tensile
Max bundle Diameter

Colors

Qty/bag

Price/bag



7"
7.5"
 50 LB
2.0"

Black, Natural

1000

$55
Select Color:
14" 14.6" 120 LB 4.0"

All

 100

$14 Black

$18 Colors
Select Color:

Top

Click picture for larger image - Releasable Cable TiesReleasable Cable Ties

Our releasable Nylon wire ties are simple to use, featuring a trigger release mechanism, which can be released with one hand. The pawl type of release mechanism is also available, but the trigger release is stronger (50 LB vs. 40 LB). Both types of releasable cable ties are great for temporary fastening and wire harnesses that require rework. If you prefer the pawl type, please feel free to contact us

Ordering Information - Releasable Cable Ties

Nominal Size

Actual Length
Max bundle Diameter

Colors

Qty/bag

Price/bag



5"
5.9"
1.3"

Black, Natural

100

$6.25
Select Color:

8"
7.8"
2.0"

Black, Natural

100

$8.25
Select Color:

11"
11.8"
3.0"

Black, Natural

100

$12.50
Select Color:

14"
14.6"
4.0"

Black, Natural

100

$14.00
Select Color:

Top



Click picture for larger image - Mounting Head cable tiesMounting Head Cable Ties

Our mounted head Nylon wire ties are simple to use, featuring a standard type of cable tie together with a mounting hole (see table for screw sizes). They are ideal for mounting a wire harness or wire bundle to a rail, wall, ceiling, or rack mount system.



Ordering Information - Mounted Head Cable Ties

Nominal Size

Actual Length
Max bundle Diameter
 Screw Hole Loop Tensile

Colors

Qty/bag

Price/bag

 Add to Cart

5"
5.9"
1.3"
 #8 40 LB

Black, Natural

100

$4.50
Select Color:

8"
7.9"
1.8"
 #10 50 LB

Black, Natural

100

$6.25
Select Color:
8" 8.4"
2.4"
#10
2.4"
Burgundy
100
$117

11"
12.6"
3.0"
 #10 50 LB

Black, Natural

100

$9.50
Select Color:
14" 15.3" 4.0" #10 50 LB Black, Natural 100 $10.75
Select Color:
14" 14.8" 4.0" 1/4" 120 LB Black, Natural 100 $15.00
Select Color:

Top



Stainless Steel Cable Ties

Our self-locking stainless steel cable ties are simple to use, have very high loop tensile strength (150 pounds), and since they're made from 304 Stainless Steel, are perfect for use in harsh chemical environments.

  • Low profile
  • Self-locking ball bearing head mechanism
  • Fully adjustable strap provides quick and easy installation using hand tool
  • Fully enclosed head does not allow dirt or grit to interfere with locking mechanism
  • High tensile strength adds strength and safety on heavy duty applications
  • Smooth rounded edges ensure safe, efficient handling
  • Temperature Range -112°F (-80°C) to 1000°F (538°C)
  • Useful in extreme temperature environments
  • Flame retardant and non-toxic

Ordering Information - 304 Stainless Steel Cable Ties

150 LB Loop Tensile

Nominal Size

Actual Length
Max bundle Diameter
 Width

Qty/bag

Price/bag

 Add to Cart

5"
5.11"
1"
 0.187"

100

$37

8"
7.87"
2"
 0.187"

100

$46

11"
11.81"
2.7"
 0.187"

100

$50
15" 14.56" 5" 0.187" 100 $55
21" 20.47" 6" 0.187" 100 $60
27" 26.77" 8" 0.187" 100 $65
33" 33.07" 10" 0.187" 100 $75

Top




Click picture for larger image - Tefzel Cable TiesTefzel Cable Ties

Tefzel® Cable ties (ETFE [ethylene-tetrafluoroethylene]), although weaker than Nylon are also extremely versatile. Used in high temperature applications, Tefzel is also highly resistant to concentrated acids (such as hydrofluoric acid, which is used for etching glass, and sulfuric acid). In addition, in high humidity environments, Tefzel is virtually unaffected.

Adding even further to Tefzel's versatility is its radiation resistance up to 100 megarads, its high temperature stability (rated for continuous use up to 302°F, or 150°C), its ultraviolet (UV) light resistance, and its UL 94V-0 flame rating.

Features:

  • RoHS Compliant
  • Material: ethylene-tetrafluoroethylene (ETFE)
  • Weather resistant, UV resistant
  • Colors Available: Blue
  • Material Flammability Rating UL94V-0
  • Continuous use temperature: 302°F (150°C)
Ordering Information - Tefzel Cable Ties

Nominal Size

Actual Length
Min Loop Tensile
Max bundle Diameter

Qty/bag

Price/bag



4"
4.0"
18 LB
0.9"

100

$22.75

7"
7.4"
50 LB
1.9"

100

$83
Bag Size
1000
$747
11" 11.6" 50 LB 3.0" 100 $111
14" 14.6" 50 LB 4.0" 100 $143
14"
14.6" 120 LB 4.0" 100 $322

Top




Heat Stabilized Nylon Cable Ties

Heat Stabilized Nylon 6,6 cable ties are used in continuous or extended exposure to high temperatures (up to 250 degrees Fahrenheit), whereas a basic nylon tie without heat stabilizers will experience a dramatic reduction in physical properties (i.e. tensile) when exposed to temperatures above 85°C (185°F). Unstabilized ties will become brittle and eventually crack in the application. Nylon cable ties containing specially formulated heat stabilizers provide additional thermal endurance. Heat stabilized nylons are engineered for continuous exposure to temperatures up to 257°F (125°C), which meets UL standard for electrical applications.

Features:

  • RoHS Compliant
  • Material: Heat Stabilized Nylon 6,6
  • Generally suitable for indoor or short-term outdoor use only
  • Colors Available: Black
  • Material Flammability Rating UL94V-2
  • Continuous use temperature: 257°F (125°C)
Ordering Information - High temperature Nylon Cable Ties

Nominal Size

Actual Length
Min Loop Tensile
Max bundle Diameter

Qty/bag

Price/bag

4"
4.0"
18 LB
0.9"

100

$4.00
Bag Size
1000
$17.50

7"
7.4"
50 LB
1.9"

100

$5.00
Bag Size
1000
$32.50
11" 11.6" 50 LB 3.0" 100 $12.25
Bag Size:
1000 $75
14" 14.6" 50 LB 4.0" 100 $12.50
Bag Size:
1000 $80
8" 7.9" 120 LB 2.4" 100 $11.25
Bag Size:
14" 14.5" 120 LB 4.0" 100 $16
Bag Size:

Top







Click picture for larger image - Halar Plenum Cable TiesHalar Cable Ties

Halar® Cable Ties (ECTFE [ethylene-chlorotrifluoroethylene]), have properties similar to Tefzel. The major difference (besides the price) is that Halar resin is rated for use in plenum spaces. This is due to its low smoke density when burned. Its durability is similar to Nylon, and is has excellent impact resistance at normal temperatures as well as at very low temperatures. Halar has good tensile, flexural, and wear-related properties.

Halar is also highly gamma resistant, and is rated for temperatures from -50°C to 150°C. It is also UV resistant and carries a UL 94V-0 flame rating. Basically, if you need good resistance to almost any environment, but low smoke generation (i.e. plenum) is not a concern, go with Tefzel ties, otherwise if you require that all of your components be suitable for plenum (air-handling) spaces, go with Halar ties.

Features:

  • RoHS Compliant
  • Panduit Brand Cable Ties
  • Material: ethylene-chlorotrifluoroethylene (ECTFE)
  • Weather resistant, UV resistant
  • Colors Available: Red
    Material Flammability Rating UL94V-0
  • Continuous use temperature: 302°F (150°C)
  • UL Rated material for use in Plenum spaces

Ordering Information - Panduit Halar Cable Ties

Nominal Size

Actual Length
Min Loop Tensile
Max bundle Diameter

Qty/bag

Price/bag



4"
4.0"
18 LB
0.9"

100
$85

7"
7.4"
50 LB
1.9"

100

$118
11"
 11.6" 50LB 3.0" 100 $135

Top





Click picture for larger image - 18 - 50 LB toolClick picture for larger image - 120-275 LB toolCable Tie installation tools

Heavy duty tool for use with 18 - 50 lb or 120 - 275 lb.. ties. Both tools feature ratchet mechanism.

- Light tool for 18-50 LB ties features automatic cut-off and adjustable tensioning for dependable use in assembly applications.

- Heavy Duty tool for 120 - 250 LB ties features blade cutoff for single-hand use.

Ordering Information - Cable Tie Installation tools

Tool Construction
Cable ties to use with

Price



Metal
18 - 50 LB

$28

Heavy Duty

120 - 250 LB

$30
Stainless Steel Stainless Steel Ties $95

Top





Click picture for larger image - Releasable Cable TiesMounting Bases

Our adhesive backed mounting bases have a peel and stick backing, and a screw hole for more secure or temporary mounting. They feature 4 entry holes for cable tie entry at all angles, and even work with our releasable ties*. Our larger sizes (1.5" and 2") are manufactured by Panduit

Ordering Information - Mounting Bases

Nominal Size

Cable Ties to use with
Screw Hole

Colors

Qty/bag

Price/bag



1/2"
18 LB
#8

Black, Natural

100

$5.00
Select Color:

3/4"
18 - 40 LB
#10

Black, Natural

100

$6.75
Select Color:

1"
18 - 50 LB
#10

Black, Natural

100

$8.00
Select Color:
1.5" 50 - 120 LB 1/4" Black, Natural 100 $135
Select Color:
2" 50 - 120 LB 1/4" Black, Natural 100 $105
Select Color:

* For use with releasable cable ties, you must use the 1.5" or 2".

Top

Related Items


Tefzel is a registered trademark of E. I. du Pont de Nemours and Company

Halar is a registered trademark of The Atochem Company
