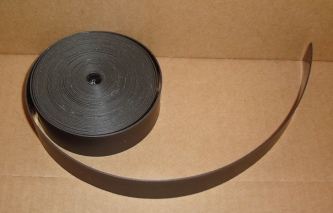

Heat Shrink Tape

Polyolefin Heat Shrink Tape

Have you ever had an application that required heat shrink tubing, but you can't remove the connector to get the tubing onto the wire? 4:1 heat shrink tubing isn't a high enough shrink ratio for you? Do you need a wrap around or slit heat shrink product? Perhaps Heat Shrink Tape is the best product for you.

Just simply wrap our adhseive lined heat shrinkable tape around your wire, like you would normal electrical tape. Fasten the ends with a cable tie, and shrink using our economical VT-1100 shrink wrap heat gun, cut off the cable ties, and you've got a water-tight seal without hours of labor reattaching your connector!

The ideal heat shrink temperature for our heat shrink tape is around 221°F (105°C).

Features:

Dual wall (adhesive lined) heat shrinkable tape, with internal wall of hot-melt adhesive provides excellent bonding to plastic and metals.
Forms pressure-tight and waterproof seal to communications, power cables and most electrical wires and cables
Shrink temperature of 105C
Continuous use temperature of up to 105C
20 kV/mm (500 V/mil) minimum electric strength (e.g. 0.031"=31 mil= 15kV)
Adhesive lining will prevent moisture penetration, allowing for long term storage of cable

Heat Shrink Tape - Ordering Information

	Tape Width	Wall Thickness	Feet per roll	Price per roll	Add to Cart
Adhesive Lined Heat Shrink Tape	1"	0.8mm (0.031")	25	$10.99

For $35 extra you can get our economy model heat gun. It has two air speeds, and a temperature control dial for temperatures ranging from 250° to 1100°F

Properties

PROPERTY	TEST METHOD	VALUES
Operating Temperature Range	n/a	-55C to 105C
Shrink Temperature	n/a	105C
Tensile Strength	ASTM D638	12 Mpa minimum
Ultimate Elongation	ASTMD638	350% minimum
Specific Gravity	ISO 1183	1.95 maximum
Dielectric Strength	IEC 243	20KV/mm minimum
Fluid Resistance Gasoline Lubricating Oil Hydraulic Fluid Water	ISO 1817	no degradation
