Heat Shrink Wrap - Heat Shrinkable Tubing

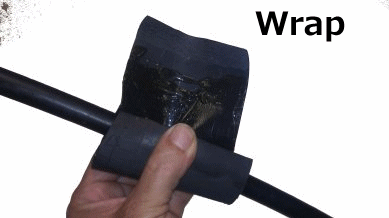

This type of heat shrink is the answer to the question of how to repair cables and connectors when they cannot be disconnected. These abrasion resistant flat wraps come in many sizes to be able to be shrunken down over any damaged cable or connector. By using this adhesive shrink wrap you are helping to protect your cable/connector against moisture as well as other destructive environmental elements. With this product you will not have remove a connector from a cable to do a repair on a damaged jacket or boot. Since this is also a high ratio shrink wrap, the material significantly thickens after shrinking allowing for even better protection. It will shrink around the contour of the repaired item and fill the voids/crevices.
Features
- Excellent cut through and abrasion resistance
- High quality superior Crosslinked Polyolefin
- Continuous use temperature of -55°C to 135°C
- Flame Retardant (Rated Non-Burning)
- shrinks down as much as 10 times its as supplied diameter (Up to 10:1 Ratio)
- NAFTA, ROHS & ELV compliant
- UV resistant color Carbon Black
- Resists Gasoline, Engine Chemicals & Cleaning Solvents
- -55C Low Temperature Flexibility (ASTM D-2671 C)
- Registered in the NASA database Cage Code 1UGZ7
Heat Shrink Wrap - Ordering Information
1 week lead time
Contact us for Bulk OEM Pricing, and custom cut pieces
Supplied Width |
Supplied Length | max suggested diameter | Type | PN | NuTech PN | Wall thickness as supplied |
Wall thickness after shrinking | Length after shrinking |
Price |
Add to Cart |
| 2.3 | 3" | 0.5 | Smooth | HSW-2.3-3 | NUWS.75 | 0.08" | 0.16 | 1.0 |
$32 | |
3" |
3" | 0.375 | Smooth | HSW-3-3 | NUWS424A | 0.015" | 0.07" | 2.0" | $33 | |
3" |
2.3" | 0.375 | Smooth | HSW-3-2.3 | NUWS-80X025 | 0.04" | 0.13" | 2.0" | $23 | |
4.3" |
4" | 1 | Smooth | HSW-4.3-4 | NUWS-137X050 | 0.04" | 0.13" | 3.5" | $36 | |
5" |
12" | 3 | Smooth | HSW-5-12 | NUWS-380X150 | 0.05" | 0.17" | 4.0" | $80 | |
6.5" |
3.75" | 0.75 | Smooth | HSW-6.5-3.75 | NUWS-200X075 | 0.05" | 0.15" | 5.5" | $50 | |
9" |
11" | 2.5 | Ribbed | HSW-9-11 | NUWS-3.00 | 0.05" | 0.16" | 7.0" | $120 | |
| 10.5" | 19" | 4.5 | Ribbed |
HSW-10.5-19 | NUWS-6.00 | 0.08" | 0.19" | 8.5" | $300 | |
| 10.75" | 6.5" | 1.4 | Ribbed | HSW-10.75-6.5 | NUWS-2.00 | 0.05" | 0.16" | 9.5" | $90 | |
| 10.75" | 14" | 3.5 | Ribbed | HSW-10.75-14 | NUWS-4.50 | 0.10" | 0.16" | 9.5" | $220 | |
| 11" | 6" | 1.3 | Ribbed | HSW-11-6 | NUWS-1.50 | 0.05" | 0.16" | 10" | $76 |
Custom cut pieces also available, please inquire
For $35 extra you can get our economy model heat gun. It has two air speeds, and a temperature control dial for temperatures ranging from 250° to 1100°F
 |
Military Specification (M23053) and Manufacturers' Cross Reference List
Not sure what you need? Try our new Heat Shrink Selector
General Purpose and Adhesive Lined Heat Shrink Tubing
High Temperature and Chemical Resistant Heat Shrink Tubing
Ultra Thin Wall and Low Shrink Temperature (80°C)Heat Shrink Tubing
Tools and Accessories
