Shiny 2:1 Polyolefin Heat Shrinkable Tubing

View Dimensions and Technical Specifications

2 to 1 Shiny Polyolefin Heat Shrink Tubing

Features:

  • 2:1 Shrink Ratio (shrinks to ½ its original diameter)
  • Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), and 3
  • 3280 Volt rated
  • Maximum Continuous use temperature 105°C
  • 12 standard colors: Black, Clear, Red, White, Blue, Yellow, Brown, Gray, Orange, Green, Violet and Yellow/Green
  • Shrink Temperature of 60°C (full recovery at 100°C) and operating temperature of -55°C to + 105°C
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
  • RoHS compliant

2:1 Shiny Polyolefin Heat Shrink - Ordering Information

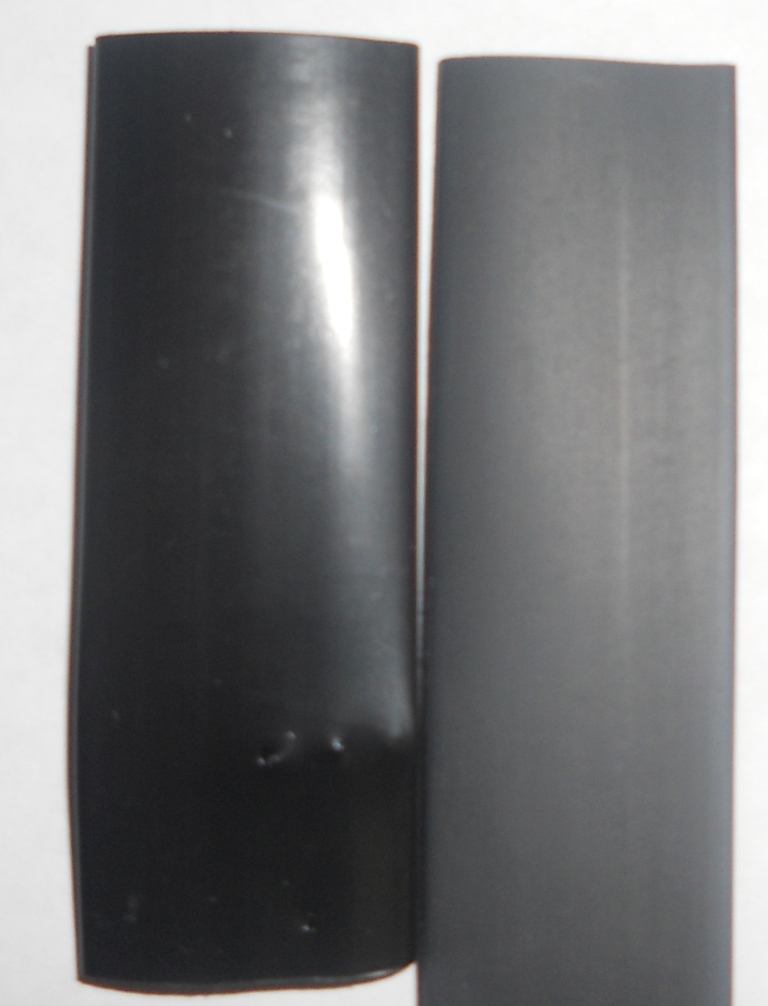

Shiny Black || Standard Black

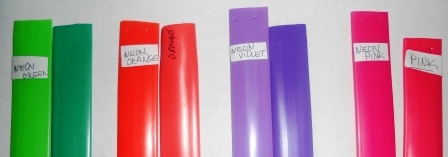

12 standard colors: Black, Red, White, Blue, Yellow, Brown, Gray, Orange, Clear, Green, Violet, Yellow/Green. Check Drop down menu for color availability.

Note: Tubing is always referred to by Nominal ID, not flat width. Flat widths are approximate, and are provided for reference purposes only.

1 week lead time

Part number

Nominal Diameter

Flat Width

ID after shrinking

Wall after shrinking

ft/spool

Price/spool

Add to Cart
HS2S-0125

1/8"

3/16"

0.063"
0.019"
656
$98.40
328
$65
100
$25
HS2S-0188

3/16"

5/16"

0.094"
0.019"

656

$116.84
328
$72.16
100
$29
HS2S-0313

5/16"

7/16"

0.156"
0.026"

328

$75.44
100
$30
50
$20
HS2S-0375

3/8"

9/16"

0.188"
0.026"

328

$85.28
100
$31.50
50
$22
HS2S-050

1/2"

13/16"

0.328"
0.029"

328

$98.40
100
$36
50
$25
HS2S-0625
5/8"
1"
0.313"
0.033"
328
$109.88
100
$42
50
$27
HS2S-075

3/4"

1-3/16"

0.375"
0.035"

328

$129.56
100
$45
50
$30
HS2S-100

1"

1-9/16"

0.500"
0.039"

164

$98.40
50
$38
25
$24
HS2S-125

1-1/4"

1-15/16"

0.625"
0.039"

164

$144.32
50
$75
25
$42
HS2S-150

1-1/2"

2-3/8"

0.750"
0.039"

164

$190.24
50
$90
25
$50
HS2S-200

2"

3-1/8"

1.00"
0.045"

82

$144.32
HS2S-300

3"

4-3/4"

1.50"
0.049"

82

$395.24
HS2S-400

4"

6-5/16"

2.00"
0.055"

82
$410
