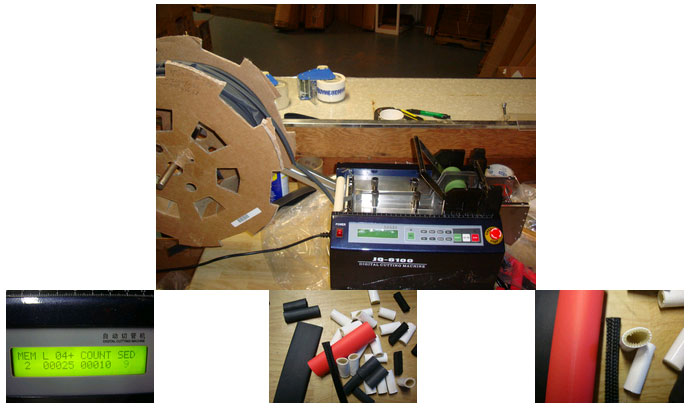

Model 6100 Heat Shrink Tubing Cutter







Model 6100 Heat Shrink tubing cutting machine - The Model 6100 shrink tubing cutter is a terrific entry-level to full scale production tube and wire cutter which will cut up to 6,000 4 inch pieces in 1 hour (or approximately 10,000 2 inch pieces)! With an input space of 4", and adjustable blade up to 1" high, you can cut a wide range of tubing sizes at feed rates ranging from 1" per second up to 15" per second, and cut lengths ranging from 1/8" up to 33 feet. Machine comes equipped with polyurethane coated feed wheels (to keep your polyolefin heat shrink tubing from getting marked or scratched), and REQUIRES NO AIR to use. Standard cut accuracy +/- 1 mm. Cuts adhesive-lined heat shrink tubing, basic polyolefin heat shrink, and many other types. Tubing sold separately. Please contact us if the option you want is not shown on the website

JQ-6100 Shrink Tubing Cutter $2750 PLEASE NOTE: These machines are sold New in original packaging, and they are great machines, when and if they work. Please keep in mind - the manufacturer's warranty is useless. We purchased a batch of machines directly from the manufacturer in China, in early 2010, and none of them worked when our customers went to use them for the first time. We took them back at our expense immediately and made other arrangements for the customers, or refunded their money, but the manufacturer has refused to stand by their product, leaving us with several non-working machines. After many hours of labor, the machines still do not work, and the manufacturer still refuses to replace these faulty machines. Therefore, we have to tell you up front that the JQ6100 is being sold as-is, with no warranty. All sales are final and are non-cancellable, non-returnable, without any support from the manufacturer, or us. If you would like a machine that works and comes backed with an actual United States Manufacturer's warranty, we highly recommend the Slice 135 heat shrink tubing cutter.

Standard Features of the Model 6100 Cutting machine:

• User friendly touch controls with easy to read LCD readout
• Operates on standard 110V (220 also available) power, without the need for compressed air supply/tanks
• Push button emergency stop immediately shuts off power. Internal memory saves point of shut-off so you don't lose count.
• Up to 10 memory locations for saving of your most frequently used cutting set-ups.
• Adjustable cut length, piece count and cutting speed (cut 100- 4inch pieces per minute)
• Pause button which allows you resume from the pause point, or start the job over
• Material dereeler allows for cutting directly from spools, or bypass it to feed 4 foot sticks of adhesive lined heat shrink.
• Cuts a wide variety of material, including wire, polyolefin heat shrink tubing, PVC heat shrink, dual wall shrink tubing, PET expandable braided sleeving, coated fiberglass sleeving, etc.
• Cut material up to 4 inches wide, 1/2" thick, or 1" diameter hollow tubing.
• Adjustable material guides to avoid material moving, and giving you a straight cut every time
• Manual feed button allows you to test program before running multiple pieces
• Manual lever for easy raising of roller for feeding of material
• Easy to remove clear safety cover for removal of jammed material
• Easy adjustment of blade height for accomodating thicker materials.
• Self-contained, adjustable chute for various ways of handling material exit

Power Requirements: 115/230 volts

Cutter Dimensions: 14’’ wide x 11’’ high x 13’’ deep

Unit Weight: 55 Lbs.

Est. Shipping. 3 weeks ARO F.O.B. NJ, 07021
