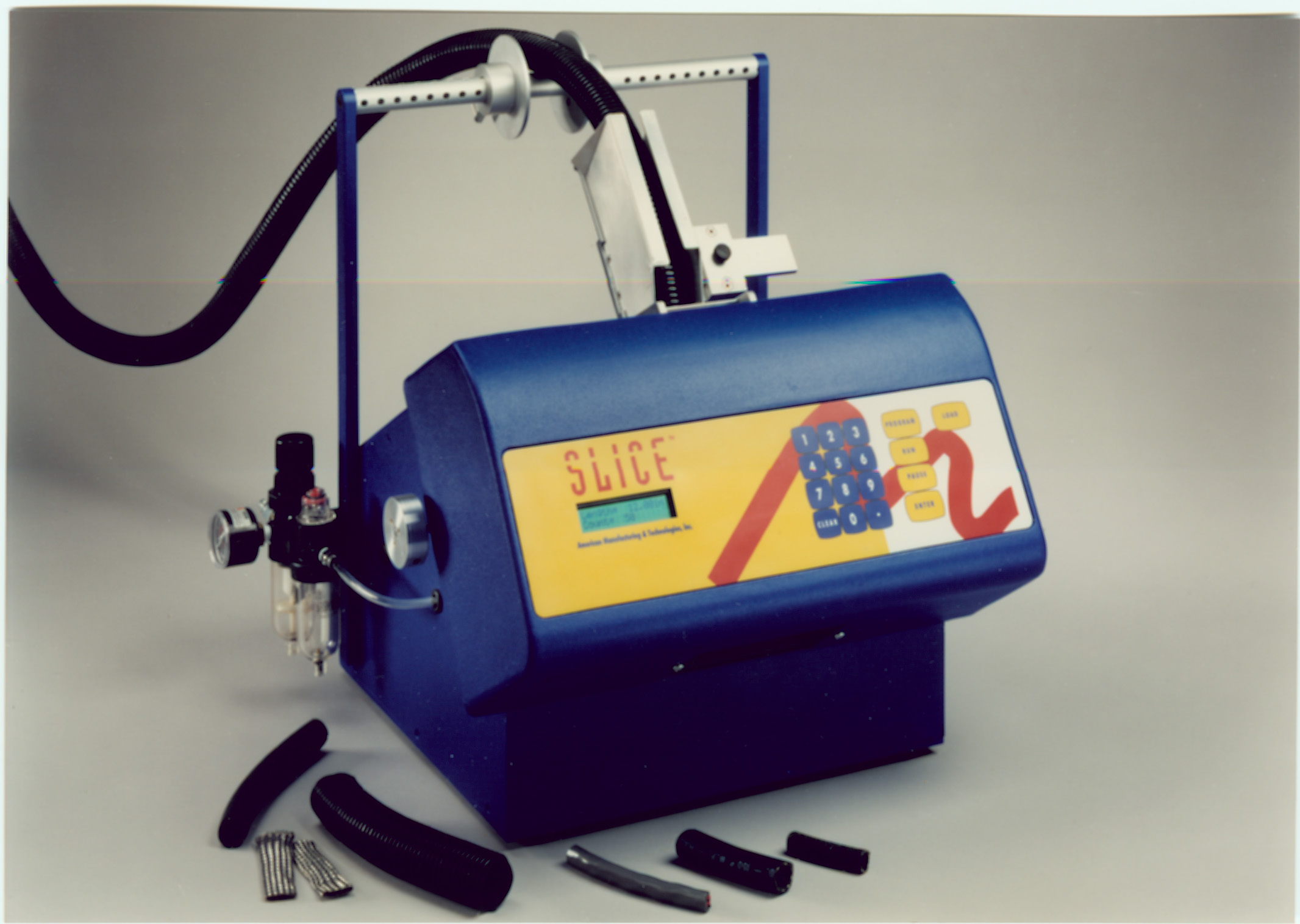

Slice 135 Heat Shrink Tubing Cutter

Slice Model 135 Heat Shrink tubing cutting machine - The Model 135 shrink tubing cutter will cut up to 13,000 4 inch pieces in 1 hour! With an input space of 3" x 3/16", you can cut a wide range of tubing sizes at feed rates ranging from 1" per second up to 30" per second. Machine comes equipped with polyurethane coated feed wheels (to keep your polyolefin heat shrink tubing from getting marked or scratched), and all air filters and regulators. Standard cut accuracy +/- 1 mm. Cuts adhesive-lined heat shrink tubing, basic polyolefin heat shrink, and many other types. Tubing sold separately. Please contact us if the option you want is not shown on the website.

Click on the link for a video of the Slice 135 in action

The SLICE Model 135P wire cutter is an air operated, automated measuring and cutting system, capable of cutting a wide variety of materials including Polyolefin heat shrink, Kynar heat shrink tubing, and adhesive lined shrink tubing on reels, as well as up to 30-conductor flat ribbon cable.

With an adjustable cutting speed ranging from 1 inch to 30 inches per second and optional multi-end feed system, you can cut thousands of pieces per hour.

Standard Features of the Model 135 Cutting machine:

• Precision Engineered and machined with State of the Art CNC (Computer Numerical Control) Machining.
• Aluminum, stainless steel and hardened tool steel construction
• Simple changover procedure allows you to switch products and/or speeds in seconds.
• Adjustable cutting speed from 1”-30 inches per second
• Easy to load product utilizing adjustable, triple-roller guide wheels.
• Spring Loaded drive tension with one drive wheel and one idler wheel to enhance pulling action.
• Polyurethane coated wheels so your tubing doesn't get scratched..
• User friendly touch controls with numeric keypad and easy to read LCD readout
• Up to 99 stored standard programs with up to 30 additional “batch programs”. each “batch” program can contain up to 10 standard programs.
• User selected units of either inches or millimeters
• Accuracy is within +/- 1.0 millimeter
• All air filters and regulators are included
• ¼” X 3” opening aperture.
• Stainless Steel wheels available in lieu of Poly wheels at no extra cost.

Power & Air Requirements: 115/230 volts at 50/60-hertz single phase and air pressure maintained @ 80 psi min

Cutter Dimensions: 15’’ wide x 12’’ high x 18’’ deep

Unit Weight: 35 Lbs.

Optional Components:

Blade Only - P/N MFB3044……………………………..……………….$300 each

Die Bottom - P/N MFB3054……………………………....……………….$165 each

Throat guide assembly only………………………………....……………..$375.00 each

MULTICUT Reel system and Throat Guide for 3 or 5 ends……………..$1075.00 each

Extension Arms (for 24" spools)……………..……………………………..$105.00 each

Est. Shipping.1- 2 weeks ARO F.O.B. Niles, IL

Warranty:
Every model carries the same one year warranty on electronics and mechanical elements (exclusive of blades or poly-wheels) or one million cuts, whichever comes first.
