3M FP-301 2 to 1 Standard Wall Polyolefin Heat Shrink Tubing



Features

  • 2:1 Shrink Ratio (shrinks to ½ its original diameter)
  • Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), and 3
  • UL 224 VW-1 and CSA OFT recognized
  • Maximum Continuous use temperature 135°C

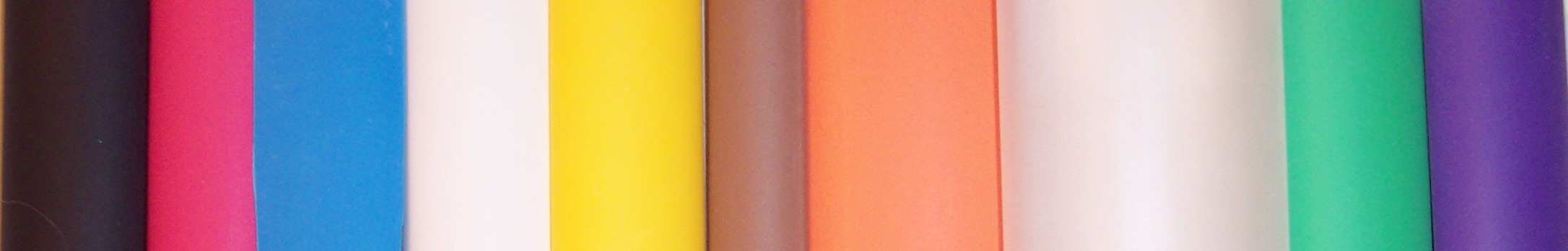

  • 12 standard colors: Black, Clear, Red, White, Blue, Yellow, Brown, Gray, Orange, Green, Violet and Yellow/Green
  • Shrink Temperature of 120°C and operating temperature of -55°C to + 135°C
  • Crosses to : Sumitomo B2, Raychem RNF-100, Alpha FIT-221, Canusa CPX-100, LG GSHS-1635F
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.

3M FP-301 2:1 Polyolefin Heat Shrink - Ordering Information




12 standard colors: Black, Red, White, Blue, Yellow, Brown, Gray, Orange, Clear, Green, Violet, Yellow/Green. Check Drop down menu for each size to see current stock. If an item is in the drop down but not in stock, lead time is usually less than 1 week.

View Dimensions and Technical Specifications



Note: Tubing is always referred to by Nominal ID, not flat width. Flat widths are approximate, and are provided for reference purposes only.

Stock colors: Black and Clear. 2:1 Polyolefin heat shrink also available in 12 colors from another manufacturer and in stock


23053/5-

Nominal ID

Flat Width

ID after shrinking

ft/spool

Price/spool

Add to Cart
102

1/16"

1/8"

0.031"

1000

$151
103

3/32"

1/8"

0.047"

500

$85
104

1/8"

3/16"

0.063"

500

$89
105

3/16"

5/16"

0.094"

250

$52
106

1/4"

3/8"

0.125"

200

$49
107

3/8"

9/16"

0.188"

200

$74
108

1/2"

13/16"

0.250"

200

$80
109

3/4"

1-3/16"

0.375"

200

$97
110

1"

1-9/16"

0.500"

100

$75
111

1-1/2"

2-3/8"

0.750"

100

$139
112

2"

3-1/8"

1.00"

100

$175
113

3"

4-3/4"

1.50"

50

$235
114

4"

6-5/16"

2.00"

50
$325



*Clear is Class 2. So 1/4" Clear would be AMS-DTL-23053/5-206



For $35 extra you can get our economy model heat gun. It has two air speeds, and a temperature control dial for temperatures ranging from 250° to 1100°F

$35

M23053 Color Codes:

-0 Black, -1 Brown, -2 Red, -3 Orange, -4 Yellow, -5 Green, -6 Blue, -7 Violet, -8 Gray, -9 White, -C Clear







Heat Shrink Kits

Small Kit (180 pieces ranging from 1/8" to 1/2" ID 2:1 Polyolefin Heat Shrink in a polypropylene compartment storage box with hinged lid)

Small Heat Shrink Tubing Kit

1/8" 2:1 Polyolefin - (Black, Blue, Yellow, Red, White) - 15 pieces of each color - 2" per piece
1/4" 2:1 Polyolefin - (Black, Blue, Yellow, Red, White) - 6 pieces of each color - 2" per piece
3/8" 2:1 Polyolefin - (Black, Blue, Yellow, Red, White) - 10 pieces of each color - 2" per piece
1/2" 2:1 Polyolefin - (Black, Blue, Yellow, Red, White) - 5 pieces of each color - 3" per piece
***Also available in ALL BLACK
Small Kit - Select Color Option: $13



Large Kit (146 pieces ranging from 1/8" to 1" ID 3:1 Dual Wall Heat Shrink in a polypropylene storage box with handle and removable shelf)

Large Heat Shrink Tubing KitLarge Heat Shrink Tubing Kit

1/8" 3:1 Dual Wall Polyolefin - 45 pieces - 2" per piece
3/16" 3:1 Dual Wall Polyolefin - 45 pieces - 2" each, AND 4 pcs - 6" each
1/4" 3:1 Dual Wall Polyolefin - 20 pieces - 4" each
3/8" 3:1 Dual Wall Polyolefin - 10 pieces - 6" each
1/2" 3:1 Dual Wall Polyolefin - 8 pieces - 6" each
3/4" 3:1 Dual Wall Polyolefin - 4 pieces - 4" each, AND 4 pcs - 2" each
1" 3:1 Dual Wall Polyolefin - 6 pieces - 6" each
***Available in ALL BLACK, Half Black/Half Red, Half Black/Half Clear
Large Kit - Select Color Option: DISCONTINUED
