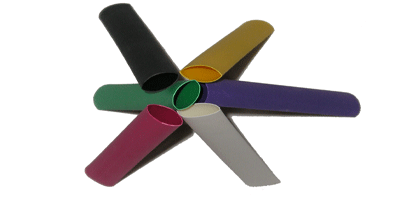

3M EPS-200 2 to 1 Adhesive Lined Heat Shrinkable Tubing

3M 2:1 heat shrink tubing is supplied standard with a "dual-wall" construction. When exposed to the heat from a heat gun (roughly at 90°C), the inner layer begins to flow (just like a hot melt adhesive). When the tubing shrinks and and subsequently cools down, the inner layer solidifies and forms a moisture barrier between the tubing and the component or wire. This provides a water-tight seal, protecting the connector and/or wire.

Meets M23053/4 Class 2

3M EPS-200 2:1 Adhesive Heat Shrink ordering information

100 foot minimum. 1 week lead time for 3M EPS-200 - Black only. For smaller quanities see our 3:1 dual wall
AMS-DTL-23053/4-	Nominal ID	Part #	Ft/pc	Price/piece	Enter Qty and Add to Cart
N/A	1/8"	EPS200-1/8	4	$4.00
201-0	1/4"	EPS200-1/4	4	$4.50
202-0	3/8"	EPS200-3/8	4	$6.00
203-0	½"	EPS200-1/2	4	$7.00
204-0	¾"	EPS200-3/4	4	$12.00
205-0	1"	EPS200-1	4	$14.00
206-0	1 ½"	EPS200-1-1/2	4	$24.00

For $35 extra you can get our economy model heat gun. It has two air speeds, and a temperature control dial for temperatures ranging from 250° to 1100°F

Other Items

Heat Guns

VT-1100 with 2 Air Speeds, and a temp. control dial for range of 250°F - 1100°F

Micro Therm MJ-600 - Pocket sized cordless refillable butane heat source. Great alternative to electric heat guns. Waterproof piezo electronic ignition, safety lock trigger, and a reflector shield for use with heat shrink.
