Metal Braided Sleeving

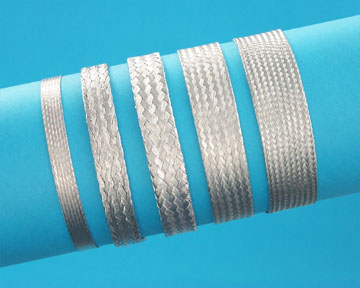

Tin Copper braided sleeving




Made in compliance with AA59569 (formerly QQB575) specifications where applicable. The braid is manufactured to provide shield coverage of 90% minimum (70% for .078" and smaller) at the nominal diameters specified. The raw material meets ASTM B33 requirements.

Features of Tin Plated Copper braided sleeving:

  • Excellent cut through and abrasion resistance
  • Made in compliance with AA59569 (formerly QQB575) specifications where applicable.
    • Flat braid is typically used as a flexible and durable ground strap. High currents (Amps) are easily carried in low voltages.
    • Tubular braid is made with individual ends that conform to ASTM B33 specification. The braid is manufactured to provide shield coverage of 90% minimum
  • Braided from 36 AWG (0.005") tinned copper wire



Pricing for Tin coated Copper Expandable Braided Sleeving (Flat)

Please note: 1 week lead time for all sizes and quantities. Some sizes subject to factory availability

Nominal Flat Width

# Carriers

# Ends
Approx AWG Equiv
Current Carrying Capacity (AMPS*)
Feet per spool
Price per spool
Bulk Spool Ordering
1/8"
24/72
18
16.0
500
$70

100
$20
3/16"
24/120
15
25.0
500
$95
100
$28
10
$17
1/4"
24/168
14
32.0
500
$165
100
$50
10
$25
3/8"
48/288
12
40.0
250
$135
100
$55
10
$30
1/2"
48/384
10
53.0
250
$153
100
$68
10
$35
5/8"
48/528
9
62.0
250
$181
100
$80
10
$39
3/4"
48/864
7
85.0
250
$360
100
$160
10
$80
1"
48/864
7
85.0
250
$365
100
$162
10
$80
1-1/2"
48/528
3
145.0
100
$327
50
$182
1-3/4"
48/1248
1/0
250.0
100
$666
50
$370





*Values shown are for bare cable in free air at 30 deg. C (86 deg. F) and are for reference use only. Actual values depend upon permissible temperature rise, voltage drop, and other conditions of service.
Purchases of 5 or more Bulk spools (any size) will receive a 20% discount on the sleeving.




Pricing for Tin coated Copper Expandable Braided Sleeving (Tubular)

Please Please note: 1 week lead time for all sizes and quantities

Nominal Diameter

# Carriers

# Ends
Approx AWG Equiv
Current Carrying Capacity (AMPS*)
Feet per spool
Price per spool
Bulk Spool Ordering
1/8"
24/120
15
25.0
500
$114

100
$28
11/64"
24/168
14
32.0
500
$260
100
$58
10
$35
1/4"
24/384
10
53.0
500
$281
100
$63
10
$32
3/8"
48/384
10
53.0
250
$150
100
$75
10
$36
1/2"
48/528
9
62.0
250
$205
100
$91
10
$40
25/32"
48/864
7
88.0
250
$420
100
$180
10
$110
1" (30awg)
48/384
4
120.0
250
$490
100
$218
10
$130

1-1/4"

(30awg)
48/480
3
145.0
100
$477
50
$265

1-1/2"

(30awg)
48/576
3
145.0
100
$486
50
$270

2"

(30awg)
48/672
2
180.0
250
$1200
100
$800





*Values shown are for bare cable in free air at 30 deg. C (86 deg. F) and are for reference use only. Actual values depend upon permissible temperature rise, voltage drop, and other conditions of service.
Purchases of 5 or more Bulk spools (any size) will receive a 20% discount on the sleeving.




Pricing for Stainless Steel Expandable Braided Sleeving (Tubular)

Made in the same manner as AA59569 (formerly QQB575) braid. The braid is manufactured to provide shield coverage of 90% minimum (70% for .078" and smaller) at the nominal diameters specified. We maintain inventories of Type 304 (non-magnetic) and Type 430 (magnetic) stainless steel wire. Stainless Steel braids are most widely used in corrosive or abrasive environments.

Please note: 2 week lead time for all sizes and quantities

Nominal Flat Width

# Carriers

# Ends
Feet per spool
Price per spool
Bulk Spool Ordering
1/8"
24/120
500
$735

100
$198
3/16"
24/192
500
$760
100
$210
1/4
24/312
500
$860
100
$241
3/8
48/336
250
$560
100
$243
1/2
48/432
250
$588
100
$244
3/4
48/720
250
$870
100
$248
1 (30 awg)
48/336
250
$1127
100
$450





*Purchases of 5 or more Bulk spools (any size) will receive a 20% discount on your sleeving purchase.
