Metal Braided Sleeving

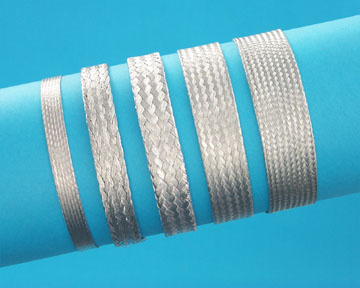

Tin plated Copper (Flat)	Tin plated Copper (Tubular)	Stainless Steel(Tubular)

Made in compliance with AA59569 (formerly QQB575) specifications where applicable. The braid is manufactured to provide shield coverage of 90% minimum (70% for .078" and smaller) at the nominal diameters specified. The raw material meets ASTM B33 requirements.

View Flat Braid Pricing

View Tubular Braid Pricing



Pricing for Tin coated Copper Expandable Braided Sleeving (Flat)

Please note: 1 week lead time for all sizes and quantities

Nominal Flat Width	# Carriers # Ends	Approx AWG Equiv	Current Carrying Capacity (AMPS*)	Feet per spool	Price per spool	Bulk Spool Ordering
1/8"	24/72	18	16.0	500	$70	Select Spool Qty 500 feet 100 feet
				100	$20
3/16"	24/120	15	25.0	500	$95	Select Spool Qty 500 feet 100 feet 10 feet
				100	$28
				10	$17
1/4"	24/168	14	32.0	500	$165	Select Spool Qty 500 feet 100 feet 10 feet
				100	$50
				10	$25
3/8"	48/288	12	40.0	250	$135	Select Spool Qty 250 feet 100 feet 10 feet
				100	$55
				10	$30
1/2"	48/384	10	53.0	250	$153	Select Spool Qty 250 feet 100 feet 10 feet
				100	$68
				10	$35
5/8"	48/528	9	62.0	250	$181	Select Spool Qty 250 feet 100 feet 10 feet
				100	$80
				10	$39
3/4"	48/864	7	85.0	250	$360	Select Spool Qty 250 feet 100 feet 10 feet
				100	$160
				10	$80
1"	48/864	7	85.0	250	$365	Select Spool Qty 250 feet 100 feet 10 feet
				100	$162
				10	$80
1-1/2"	48/528	3	145.0	100	$327	Select Spool Qty 250 feet 100 feet 10 feet
				50	$182
				10	$90
1-3/4"	48/1248	1/0	250.0	100	$666	Select Spool Qty 250 feet 100 feet 10 feet
				50	$370
				10	$210

*Values shown are for bare cable in free air at 30 deg. C (86 deg. F) and are for reference use only. Actual values depend upon permissible temperature rise, voltage drop, and other conditions of service.



Please note: 1 week lead time for all sizes and quantities

Nominal Diameter	# Carriers # Ends	Approx AWG Equiv	Current Carrying Capacity (AMPS*)	Feet per spool	Price per spool	Bulk Spool Ordering
1/8"	24/120	15	25.0	500	$114	Select Spool Qty 500 feet 100 feet
				100	$28
11/64"	24/168	14	32.0	500	$260	Select Spool Qty 500 feet 100 feet 10 feet
				100	$58
				10	$35
1/4"	24/384	10	53.0	500	$281	Select Spool Qty 500 feet 100 feet 10 feet
				100	$63
				10	$32
3/8"	48/384	10	53.0	250	$135	Select Spool Qty 250 feet 100 feet 10 feet
				100	$75
				10	$36
1/2"	48/528	9	62.0	250	$205	Select Spool Qty 250 feet 100 feet 10 feet
				100	$91
				10	$40
25/32"	48/864	7	88.0	250	$420	Select Spool Qty 250 feet 100 feet 10 feet
				100	$180
				10	$110
1" (30awg)	48/384	4	120.0	250	$490	Select Spool Qty 250 feet 100 feet 10 feet
				100	$218
				10	$130
1-1/4" (30awg)	48/480	3	145.0	100	$477	Select Spool Qty 100 feet 50 feet 10 feet
				50	$265
				10	$145
1-1/2" (30awg)	48/576	3	145.0	100	$486	Select Spool Qty 100 feet 50 feet 10 feet
				50	$270
				10	$155
2" (30awg)	48/672	2	180.0	100	$513	Select Spool Qty 100 feet 50 feet 10 feet
				50	$285
				10	$165

*Values shown are for bare cable in free air at 30 deg. C (86 deg. F) and are for reference use only. Actual values depend upon permissible temperature rise, voltage drop, and other conditions of service.



Pricing for Stainless Steel Expandable Braided Sleeving (Tubular)

Made in the same manner as AA59569 (formerly QQB575) braid. The braid is manufactured to provide shield coverage of 90% minimum (70% for .078" and smaller) at the nominal diameters specified. We maintain inventories of Type 304 (non-magnetic) and Type 430 (magnetic) stainless steel wire. Stainless Steel braids are most widely used in corrosive or abrasive environments.

Please note: 2 week lead time for all sizes and quantities

Nominal Flat Width	# Carriers # Ends	Feet per spool	Price per spool	Bulk Spool Ordering
1/8"	24/120	500	$735	Select Spool Qty 500 feet 100 feet
		100	$198
3/16"	24/192	500	$760	Select Spool Qty 500 feet 100 feet
		100	$210
1/4	24/312	500	$860	Select Spool Qty 500 feet 100 feet
		100	$241
3/8	48/336	250	$560	Select Spool Qty 250 feet 100 feet
		100	$243
1/2	48/432	250	$588	Select Spool Qty 250 feet 100 feet
		100	$244
3/4	48/720	250	$870	Select Spool Qty 250 feet 100 feet
		100	$248
1 (30 awg)	48/336	250	$1127	Select Spool Qty 250 feet 100 feet
		100	$450

*Purchases of 5 or more Bulk spools (any size) will receive a 20% discount on your sleeving purchase.
